- 【Build to Last】This 80cc bicycle engine kit is mainly made of aluminum and iron through lathe machining and spray painting. It has good resistance to impact, rust, and corrosion, allowing you to use it safely for a long time.
- 【Strong Power】This 80cc bicycle engine kit adopts an advanced two-stroke engine, with a power of 2.1KW, a horsepower of 2.58hp, and a spare speed of 5000RPM to provide strong power output. The top speed can reach 23.61 miles/h, making your cycling journey full of passion.
- 【Economic & Energy-Saving】Two-stroke engines have high fuel efficiency, with a consumption of 0.53 gallons of fuel per 62.14 miles (for reference only), which is economical and practical, and reduces operating costs.
- 【Quick Start】This 2 stroke motorized bike motor kit uses a CDI electronic ignition device, and you only need to press the pedal to start, making it convenient and fast to use.
- 【Long Endurance】The 0.53-gallon fuel tank does not need frequent parking and refueling, allowing you to enjoy uninterrupted cycling and more sustained happiness.
Description
Do you want a ride that is not just a simple movement, but an adventure full of passion and speed? Our 2-stroke bicycle engine kit has ultimate performance, which will instantly ignite your cycling passion. With a speed of up to 23.61 miles per hour, you can move forward without hesitation, whether it's traveling through cities or conquering mountains and wilderness. Join us now, unleash your inner speed frenzy, and experience unprecedented cycling pleasure!
Application
This product is suitable for most V-frame 26-28 inch wheeled bicycles, mountain bikes, motorcycles, and road bikes, and can be widely used in commuting, mountain cycling, road cycling, wilderness exploration, and other occasions.
Specification
Materials: Aluminum, Iron, Rubber
Process: Lathe Machining, Spray Painting
Color: Black
Assembly Required: Yes
Engine Type: 2-Stroke Single-Cylinder Gasoline Engine
Heat Dissipation Method: Air Cooling
Start Method: Foot Pedal Start
Applicable Brake: V-Shaped Brake, Clamp Brake
Clutch Type: Manual
Drive Position: Front Wheel
Ignition Method: CDI Ignition
Spark Plug Model: Z8CM14 × 1.25
Fuel Type: 90 # Gasoline
Fuel Oil Mixture Ratio: 16:1 (New Equipment), 20:1 (After Driving 500km/310.69 Miles)
Fuel Consumption: 2L/0.53gal/100km/62.14mile
Chain Wheel Teeth: 44 Teeth
Spoke: 36
Number of Chain Teeth: 110
Displacement: 80cc
Horsepower: 2.58hp
Torque: 4N.m
Engine Power: 2.1KW
No Load Speed: 5000RPM
Maximum Speed: 38km/23.61mile/h
Fuel Tank Capacity: 2L/0.53gal
Suitable Bicycle Wheel Size: 85.3-91.86cm/26-28in
Engine Size (L*H): 23*24cm/9.06*9.45in
Package Size: 41.5*41*17cm/16.34*16.14*6.69in
Gross Weight: 11.39kg/25.11lbs
Net Weight: 11kg/24.25lbs

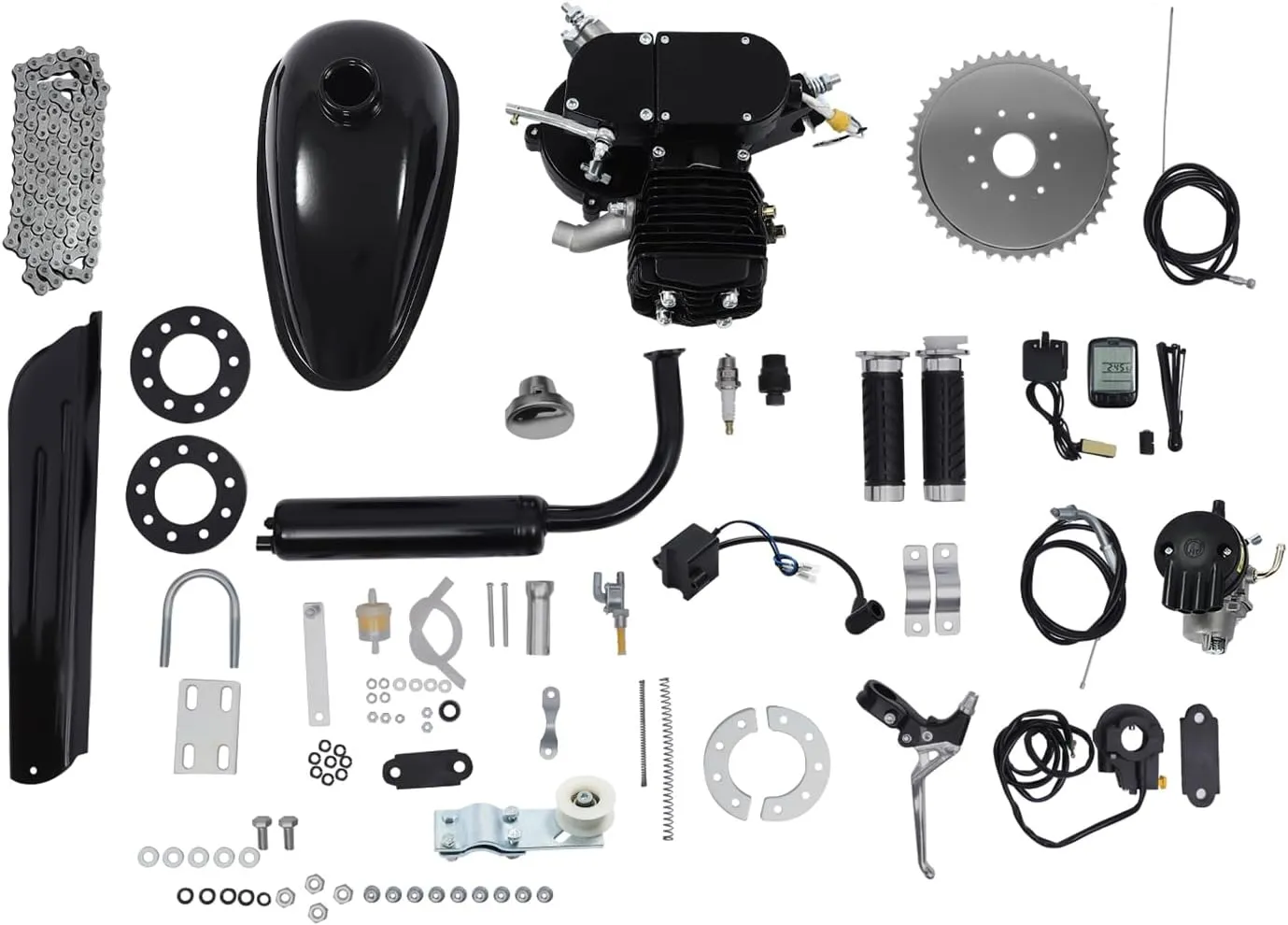

Package Included
1 * 2-Stroke Engine
1 * Muffler
1 * Ignition Coil & CDI
1 * Carburetor
1 * Electronic Speedometer
1 * Chain
1 * Fuel Tank
2 * Rubber Handles
1 * English Instruction
Other Accessories for Assembly
Notes
1.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
2.This product needs to be installed in the middle of the bicycle triangle frame, so please pay attention to the size of the triangle space on the frame. If the space is too small, the air filter of the carburetor may touch the frame.
3.The white wire of the magnetic coil does not need to be connected, please just wrap it with electrical tape (not included) for insulation.
4.Drivers need to have basic hardware skills and tools, and it takes approximately 2-3 hours to install and fine-tune. If you don’t have experience or are installing the product for the first time, please read our instruction and search online for an "80cc bicycle engine kit". This will be of great help to you and eliminate many faults during the installation process.
5.Before starting, this product does not require additional oil to be added to the machine. After a period of time, apply some solid grease (excluding) to the gears inside the casing. Please use two-stroke engine oil (not included) in the fuel tank to mix the fuel. Please store gasoline, engine oil, and mixtures (excluding) in safe containers, and do not add near heat sources or sparks. Please turn off the throttle before parking.
6.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
