- 1-phase motor

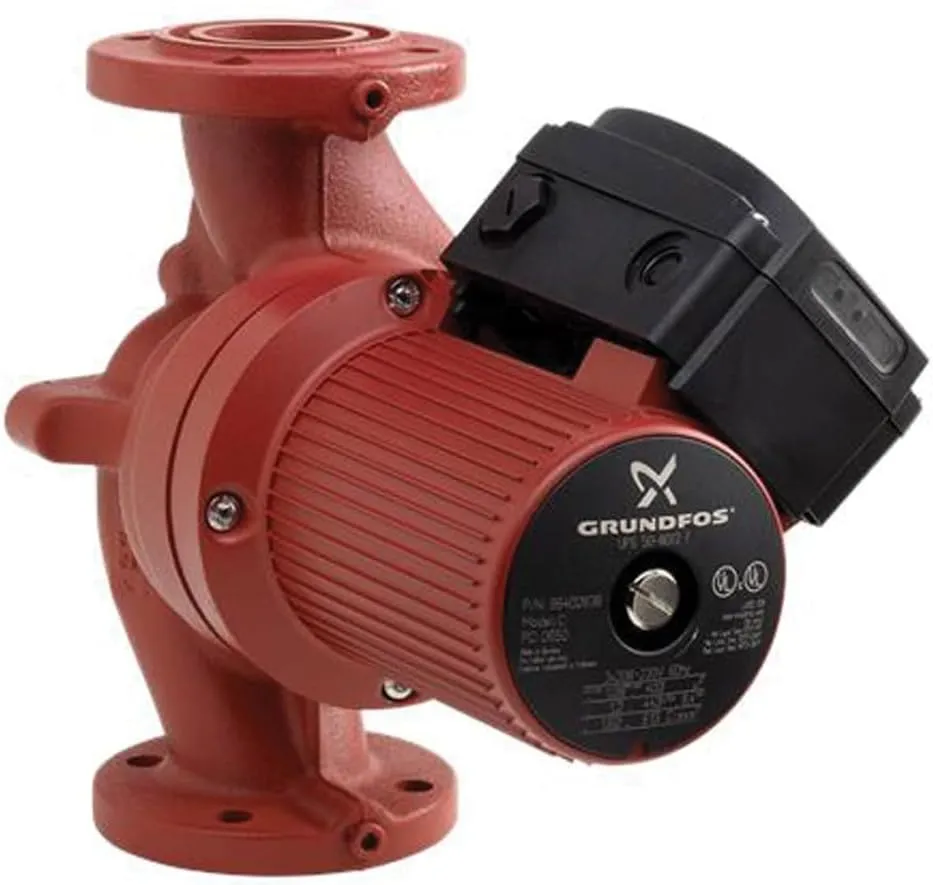

- Circulator pump with relay
- Rated Voltage: 115V; Frequency: 60 Hz
- Flange Standard: USA; Pipe Connection: GF 50
- Pressure Stage: 145 PSI; Max. Operating Pressure: 145.04 PSI
Product Description
The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. In order to avoid problems in connection with disposal, great importance has been attached to using as few different materials as possible. The pump is characterized by: 3-speed motor, ceramic radial bearings, carbon axial bearings, stainless steel rotor can, bearing plate and rotor cladding, aluminum alloy stator housing, cast iron pump housing and stator with built-in thermal switch. The motor is a 1-phase motor. The pump is supplied with a standard module in the terminal box. The standard module is to be connected to the main supply via external contactor.
From the Manufacturer
Grundfos VersaFlo Water Lubricated Circulating Pump. Cast Iron Less Flanges 3 Speed Pumps Freight charges apply Water Lubricated Circulating Pump. GRUNDFOS CI PUMP 3/4HP 115V. FLANGED. Home Repair, Repair Parts, Fix Plumbing.
