- BUILT TO LAST: stainless steel housing for aggressive water conditions; heavy-duty cast iron volute, polymer open impeller, designed for continuous duty
- ROBUST, ENERGY-EFFICIENT MOTOR: 1 HP Permanent Split Capacitor (PSC) thermally protected motor runs on 8.0 Amps, 925 Watts; CSA listed in the USA and Canada
- SOLIDS HANDLING: 1-1/2-inch FNPT discharge, open-style impeller capable of passing up to 3/4-inch semi-solids; ideally suited for sump system or light effluent wastewater removal
- AUTOMATIC OPERATION: Piggy-back vertical float switch activates when water reaches 7.87 - 10.23 inches; shuts off when liquid falls between 2.67 and 5.11 inches; can be bypassed for manual operation
- SPECIFICATIONS: 1 HP, 115 Volts, 60 Hz, 8.0 Amps, 925 Watts, 4800 GPM at 5-ft. lift; 30-ft. shut-off; maximum 15.2 PSI; 30-ft. cord, 29.8 lbs.

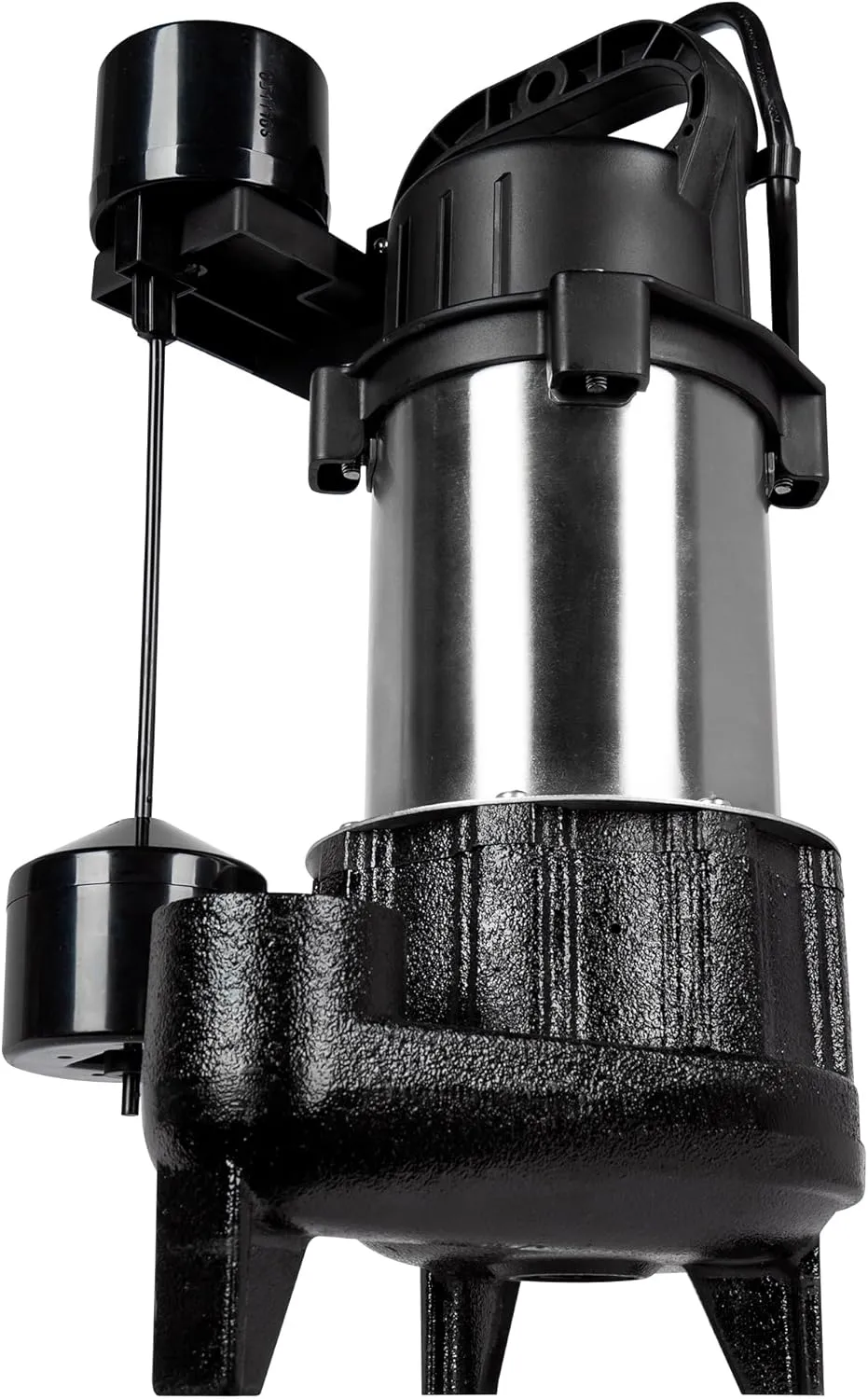

The Little Giant 16EC-SSA-V 115 Volt, 1 HP sump/light effluent pump is designed for removing wastewater in sump systems and is capable of passing up to 3/4-inch semi-solids.
This fully automatic pump has a vertical float switch which activates when the water level reaches 7.87 - 10.23 inches and shuts off when the water falls between 2.67 and 5.11 . The float switch features a piggy-back plug and can easily be converted to a manual pump by unplugging the pump from the switch and plugging the pump directly into the wall outlet making pump maintenance/testing easier. This pump comes equipped with a 10-ft. cord.
