Separators
drain:
1. Loosen the self-venting drain plug and drain the water from the bowl into a container.
2. Tighten the drain hose.
3. Use the filler ball to fill the filter with fuel.
4. Start the engine and check to make sure there are no leaks.
Replace element:
1. Loosen the self-venting drain plug and drain the filter element into a container.
2. Remove the filter element from the mounting bracket with the filter bowl attached.
3. Remove the filter bowl from the filter element and clean the O-ring seal on the filter bowl. The filter bowl is reusable* Do not discard.
4. Lubricate the O-ring with oil or grease and install on the bowl.
5. Install the bowl onto the new element and tighten finger tight.
6. Lubricate the filter top seal with oil or grease.
7. Fill the filter/cup assembly with clean fuel and install it onto the mounting bracket, finger tight.
8. Start the engine and check to make sure there are no leaks.

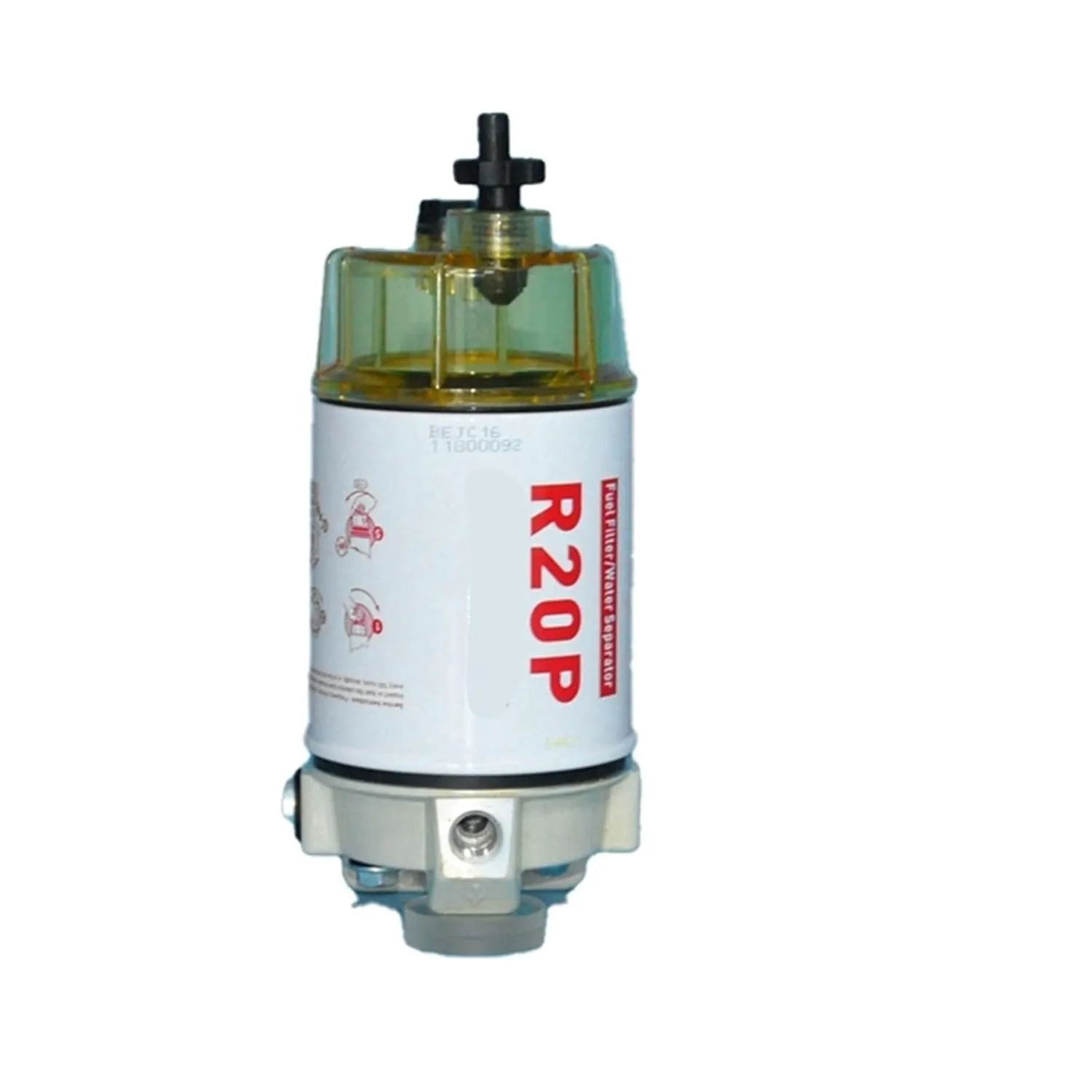

Model: R20P
Category: Oil-water separator
Material: Metal Nylon
Color: As shown in the picture
Package Contents:
1 set of fuel filter assembly
Only the above package contents, other products are not included.
Note: Light reflection and different monitors may cause the color of the item in the picture to be slightly different from the actual item. The measurement allowable error is /- 1-3cm.
==========
Origin: Mainland China

• Package Dimensions ‏ : ‎ 1.18 x 0.79 x 0.39 inches; 1.76 ounces
• Department ‏ : ‎ unisex-adult
• Date First Available ‏ : ‎ October 7, 2024
• Manufacturer ‏ : ‎ MeLphi
• Country of Origin ‏ : ‎ China
