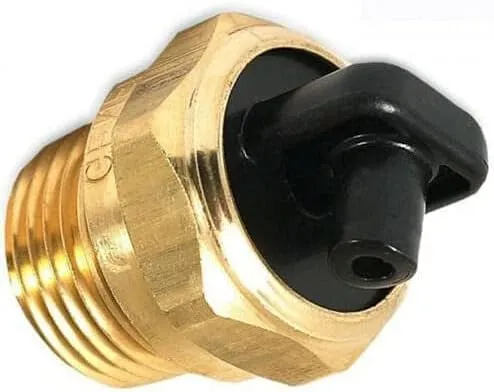

Pump Thermal Relief Valve
mitm-22-0005
Washer Thermal Relief Valve with 1/2" Male Inlet. Protects the pump from damaging heat build-up while it is in bypass mode. The thermal relief valve, sensing a rise in temperature, opens and discharges a small amount of heated fluid. This allows cooler water to enter the system and cool the pump. When the gun is discharged the cooler water will cause the valve to close immediately.
Specifications:
Compact Design - Shorter overall length
Trip Temperature: 145º F.
Brass body
Inlet thread size: 1/2" MPT
1/4? Hose barb
Mounts easily in the pump manifold,inlet water supply or bypass loop plumbing
Weight: 1.5 oz

Also fits other pressure washer pumps made by, AR North America, General Pump, Cat Pump, Hotsy, Karcher, Landa, Comet and More. As long as there is a 1/2" inlet port available.
