- SUBMERSIBLE DEEP WELL PUMP: 3.9-inch diameter well pump fits 4-inch diameter driven wells or larger wells with depths down to 434 feet; NSF/ANSI 372 certified for potable water

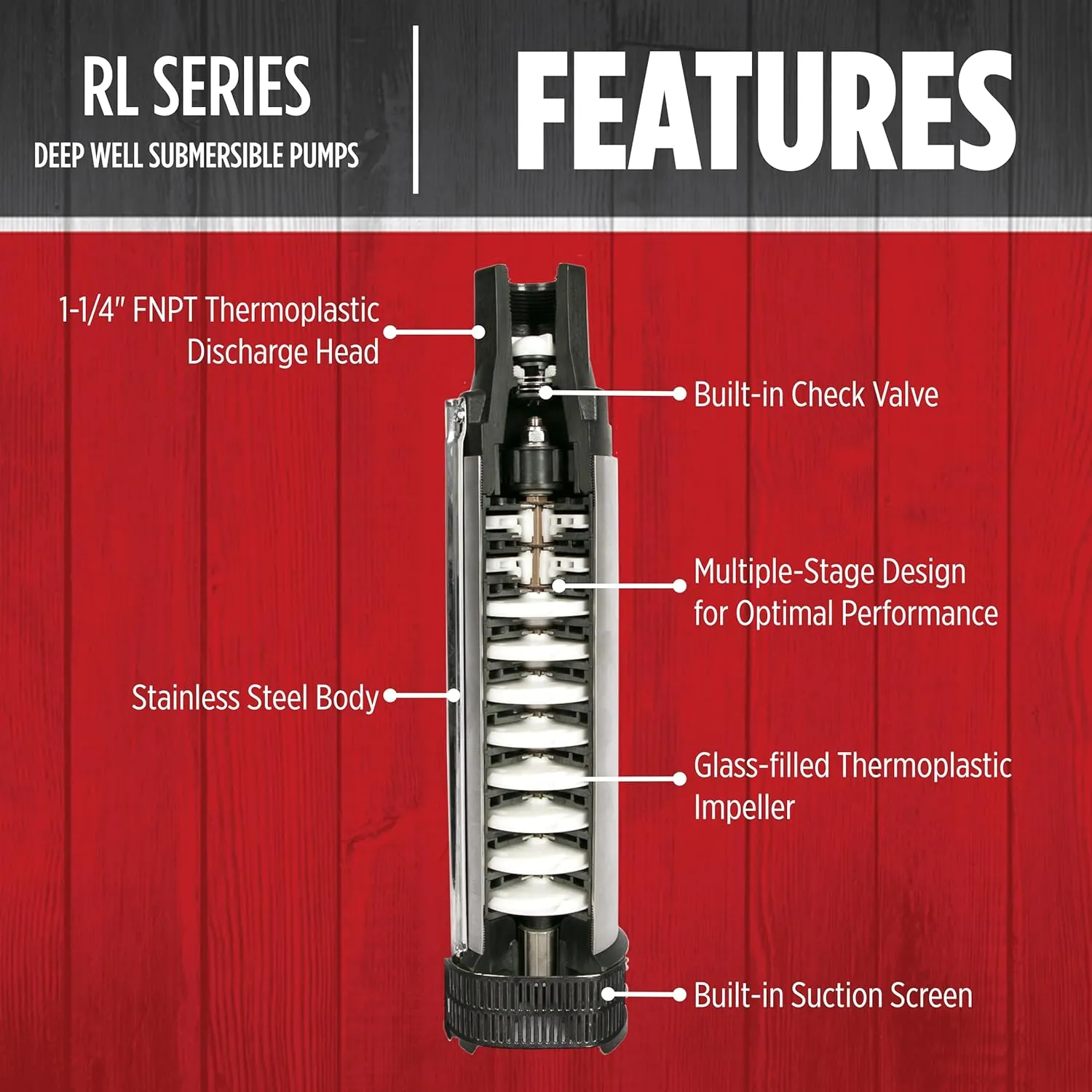

- BUILT-INS: built-in check valve help keep pump from rapid cycling and extends the motor life; built-in suction screen helps keep debris out protecting the impellers
- 1 HP MOTOR: 2-wire, 230-volt motor (not including the ground wire) rated for 12 GPM and draws water from 434 ft. (at 50 PSI delivers 12 GPM at a draw down of 334 ft.)
- 2 WIRE TECHNOLOGY: the RL12G10-2W2V is a 2-wire (plus ground) submersible pump; the switch mechanism is built into the pump; no control box is required
- SPECIFICATIONS: 1 HP; 12 GPM; 2-Wire, 230 Volt, 10.4 running Amps; 1-1/4-inch FNPT discharge; CSA and UL listed in USA and Canada; NSF/ANSI 372 certified for safe drinking water
Product Description

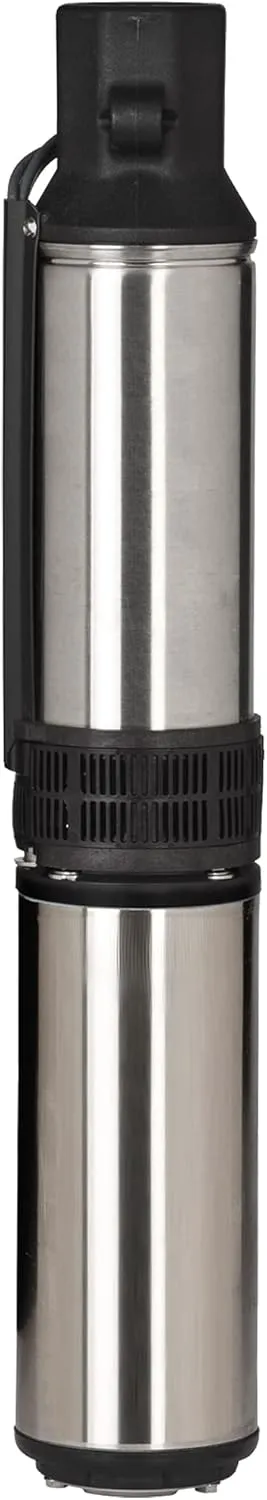

The Red Lion RL12G10-2W2V 1 HP, 2-wire, 230-volt submersible deep well pump, delivers a maximum of 12 GPM and a maximum shut-off of 434 ft. See specification sheet for performance details. This pump has a stainless steel pump casing, thermoplastic discharge and motor bracket and comes with a built-in suction screen and check valve. This 2-wire, 230 volt motor does not require a control box.
From the Manufacturer
This submersible deep well pump is ideal for 4-Inch I.D. or larger wells. It features a built in check valve, 12-GPM and built in suction screen.
