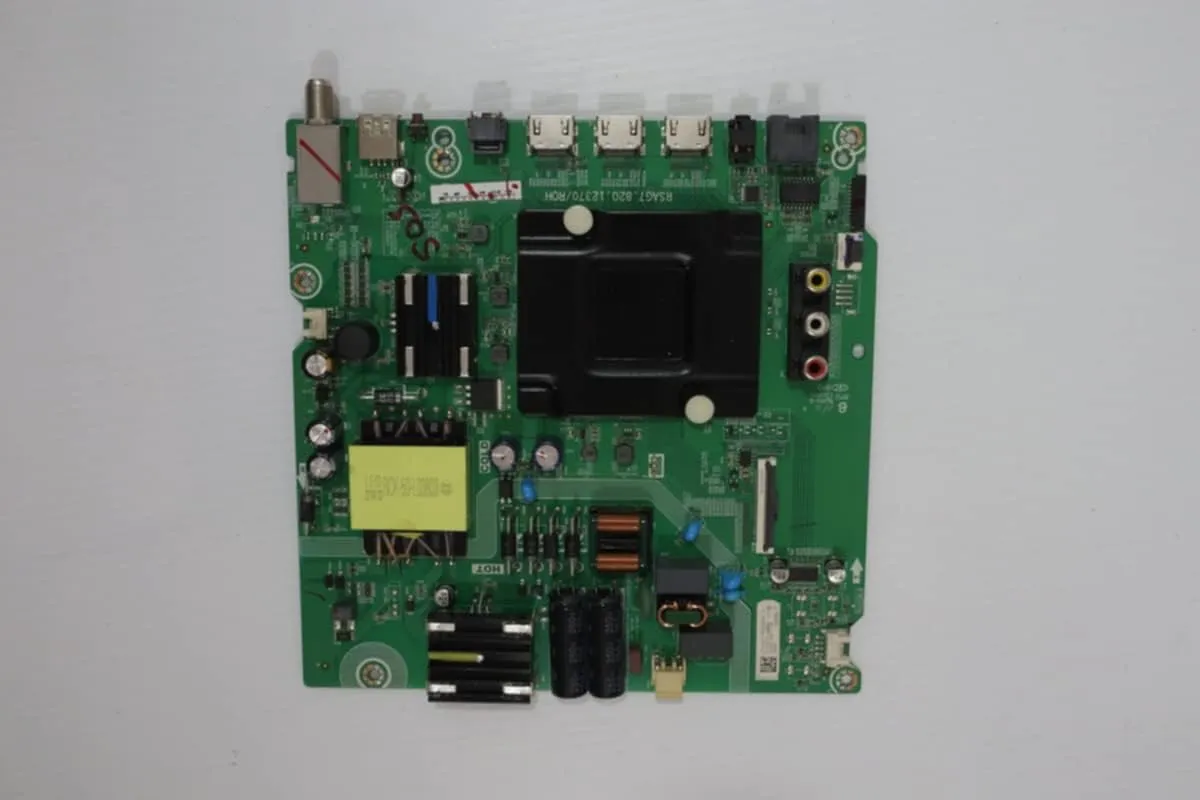

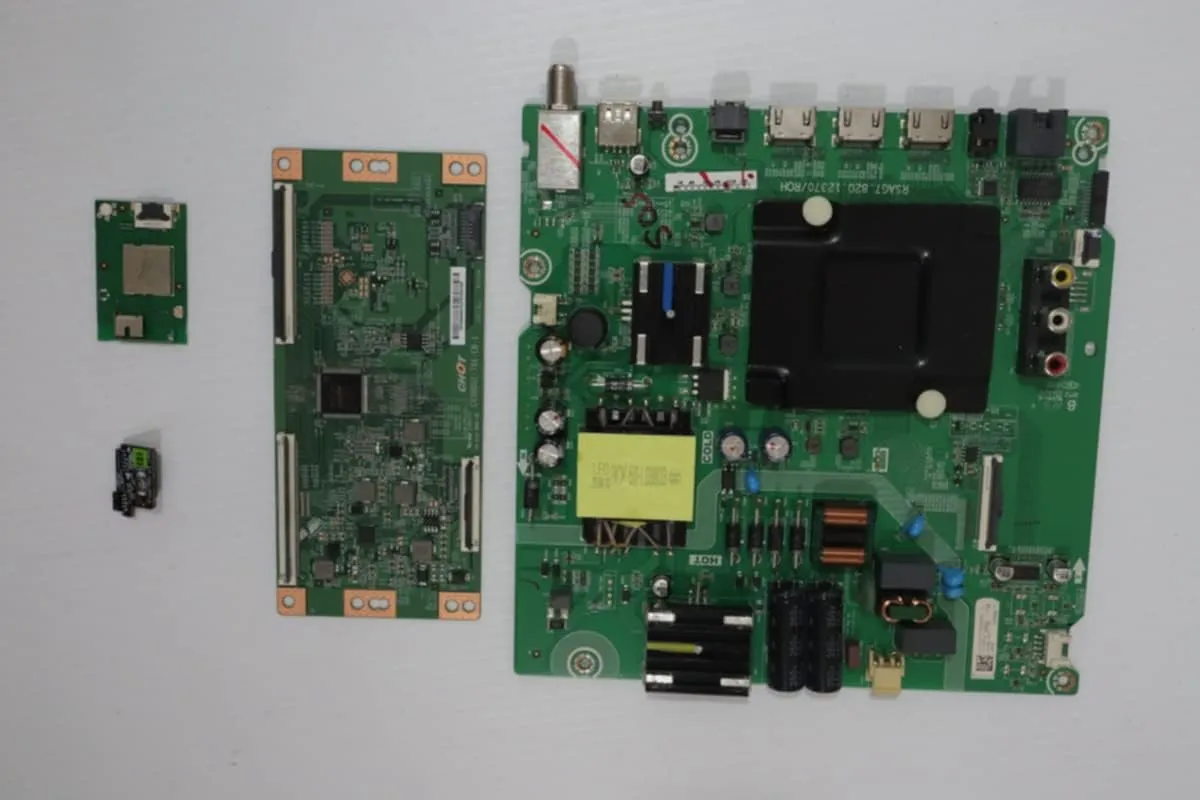

- Television repair kit for Hisense 58R6E3. Our TV Repair Kits usually include all the major components that make up the internal composition of the Television. The objective of these repair kits are to enable anyone with basic knowledge of electronics to be able to repair their television. We include Main Board, Power Supply, T-Con, as well as other non-critical parts such as WiFi boards and button set boards when available.
- It is critical that you match your Television Open Cell (LCD Panel Number) with the Open Cell number listed above. The same model TV may be different internally depending on the date and factory that it was produced, so you cannot solely depend on the make and model of the television being the same. In some cases, the same main board may be programmed to control a different LCD Panel Number (Open Cell) and again, it's critical you match Make Model Open Cell/LCD Panel Number of the TV.
- Keep in mind that some Televisions do not have TCon boards or Power Supplies as they are integrated into the Main Board. Our kit's also may include some of the major flex cables and wires of the television. If the TV is Bluetooth or WiFi enabled and the wireless module is separate, we may include the wireless module as well. This is essentially all of your Television's components in a box!
- Our replacement kits are pulled from working Televisions and the kits are tested to be 100% functional. Our parts are marked with tamper proof stickers and stamps to ensure quality. Our specialists can assist to locate the correct parts for your device should you need any assistance.
- IT IS CRITICAL TO MATCH YOUR PANEL NUMBER BEFORE ORDERING! Failure to select the matching panel number could result in a software mismatch! If your panel is not listed, this kit will most likely not work with your television. This TV repair kit comes with 30 Day Warranty.
Please see below the list of kit boards associated with each panel: Open Cell/Panel (not included): CV580U1-T01 Rev:01Main Board: RSAG7.820.10462/ROH , RSAG7.820.12370/ROH , RSAG7.820.9196/ROH , RSAG7.820.8593/R0H , RSAG7.820.9196/ROHT-Con Board: CV580U1-T01-CB-1 , 263340WiFi Module: ZDRK8812CU , 22470-RK8812CU , 1196330 , WC0HR2601 , 1196330IR Sensor: RSAG7.820.8441/R0H
Open Cell/Panel (not included): CV580U2-T01 Rev.01Main Board: RSAG7.820.10462/ROH , RSAG7.820.12370/ROH , RSAG7.820.9196/ROH , RSAG7.820.8593/R0H , RSAG7.820.9196/ROHT-Con Board: CV580U2-T01-CB-1 , CV580U2-T01WiFi Module: ZDRK8812CU , 22470-RK8812CU , 1196330 , WC0HR2601 , 1196330IR Sensor: RSAG7.820.8441/R0H
Open Cell/Panel (not included): CC580PV5D Ver.06Main Board: 295587B , 295588BT-Con Board: CCPD-TC575-009 V1.0WiFi Module: 1196330 , WC0HR2601IR Sensor: RSAG7.820.8441/R0H
Open Cell/Panel (not included): CV580U1-T01 Rev:02Main Board: RSAG7.820.12213/ROHT-Con Board: CV580U1-T01 , RSAG7.820.12793/ROHWiFi Module: 22470-RK8812CU , ZDRK8812CUIR Sensor: RSAG7.820.8441/ROH
Open Cell/Panel (not included): CV580U1-T01 Rev:02 1Main Board: 328145 , 328146T-Con Board: 328366 , RSAG7.820.12793/ROHWiFi Module: 1282009 , TX7651BU51TIR Sensor: RSAG7.820.8441/ROH
Open Cell/Panel (not included): V580DJ4-QE1 Rev.C4Main Board: RSAG7.820.8252/ROHT-Con Board: MACDJ4E12Power Supply: RSAG7.820.8349/ROHWiFi Module: 12290A-WC0HR2601IR Sensor: RSAG7.820.7181/ROH
Open Cell/Panel (not included): V5
