• The ROP Shop | Pressure Washer 7/8" Shaft Pump for Campbell Hausfeld PW2055V1LE, PW2055V2LE
• Specs - Maximum Pressure: 2800 PSI. Maximum Flow: 2.3 GPM. Maximum Pump Speed: 3400 RPM. Shaft Diameter: 7/8" Shaft. 3 Bolt Pattern: 7 11/16" x 6 3/16" x 6 7/16" & 4" Center to Each Outer Hole. Maximum Water Temperature: 140° F. Inlet Connection Type: Standard Garden Hose. Outlet Tube Connection: 22mm Male. Refer to images 2 and 3 for more information

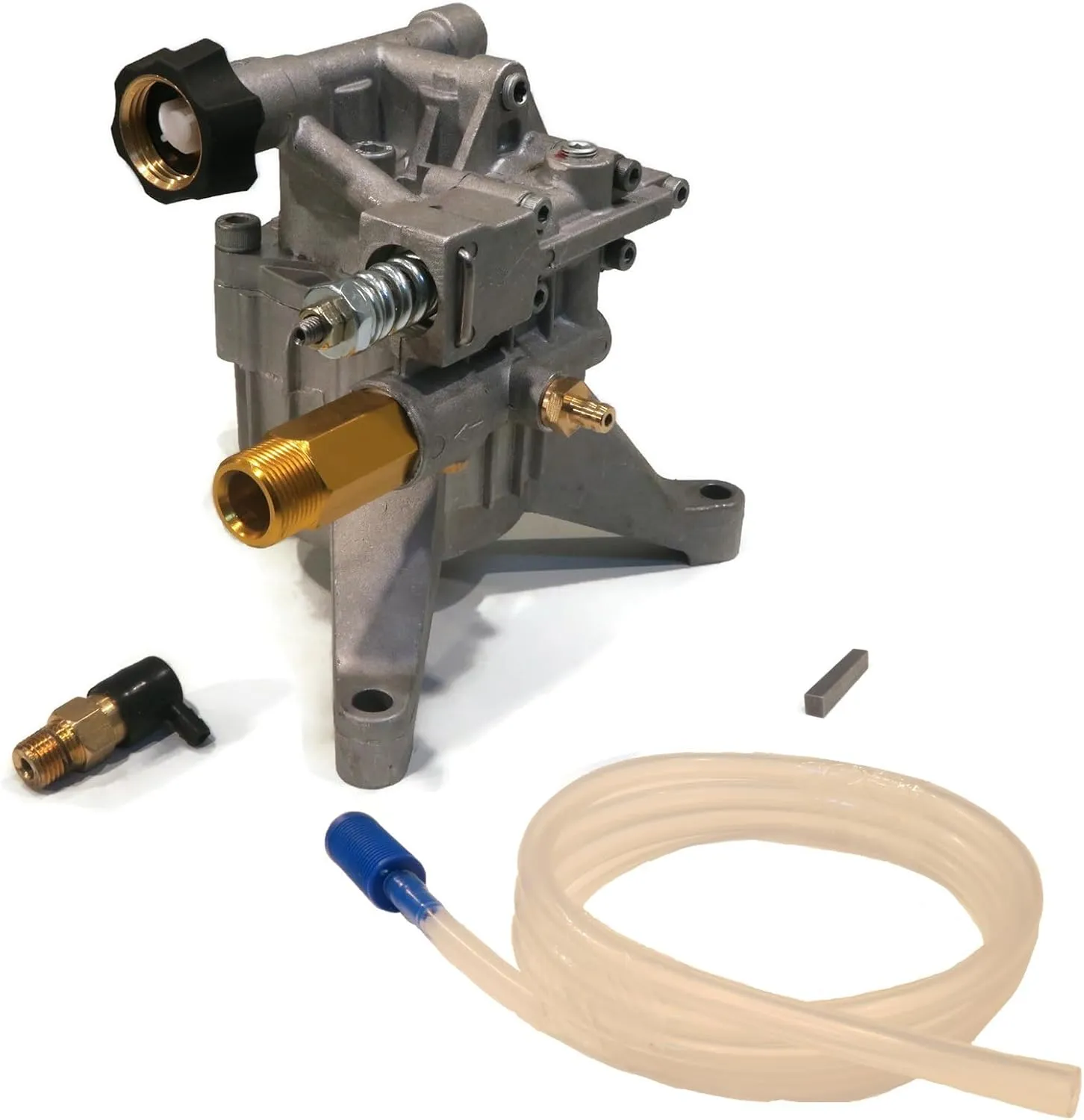

• Includes - (1) Vertical Pressure Washer Pump with Chemical Injector, Unloader Valve, Thermal Release Valve, Outlet Tube, Hose & Keyway; comes as shown in the first image
• Depending on engine configuration, longer bolts and spacers (washers) may be needed to mount the pump properly—especially if the engine has a longer shaft or the pump legs hit the frame or engine. Failure to use spacers when needed can cause pump legs to break from stress. Spacers and longer bolts are not included but can be purchased at a hardware store. Common bolt sizes: (2) 5/16"-18 x 2-1/2", and (1) 5/16"-18 x 3-1/2"
• This pump mounts vertical and is a front facing (water inlets/outlets come out of the front of the engine). Pump needs at least 5.5HP to handle PSI. Pump head can be flipped. Some models may require removing the pump to change engine oil. Please note it is not recommended to run any pressure washer pump above its maximum PSI rating. Doing so can result in damage to the pump (not covered by warranty) and/or serious bodily injury
