- Provide online user manual (wiki), please check the manual carefully before using!

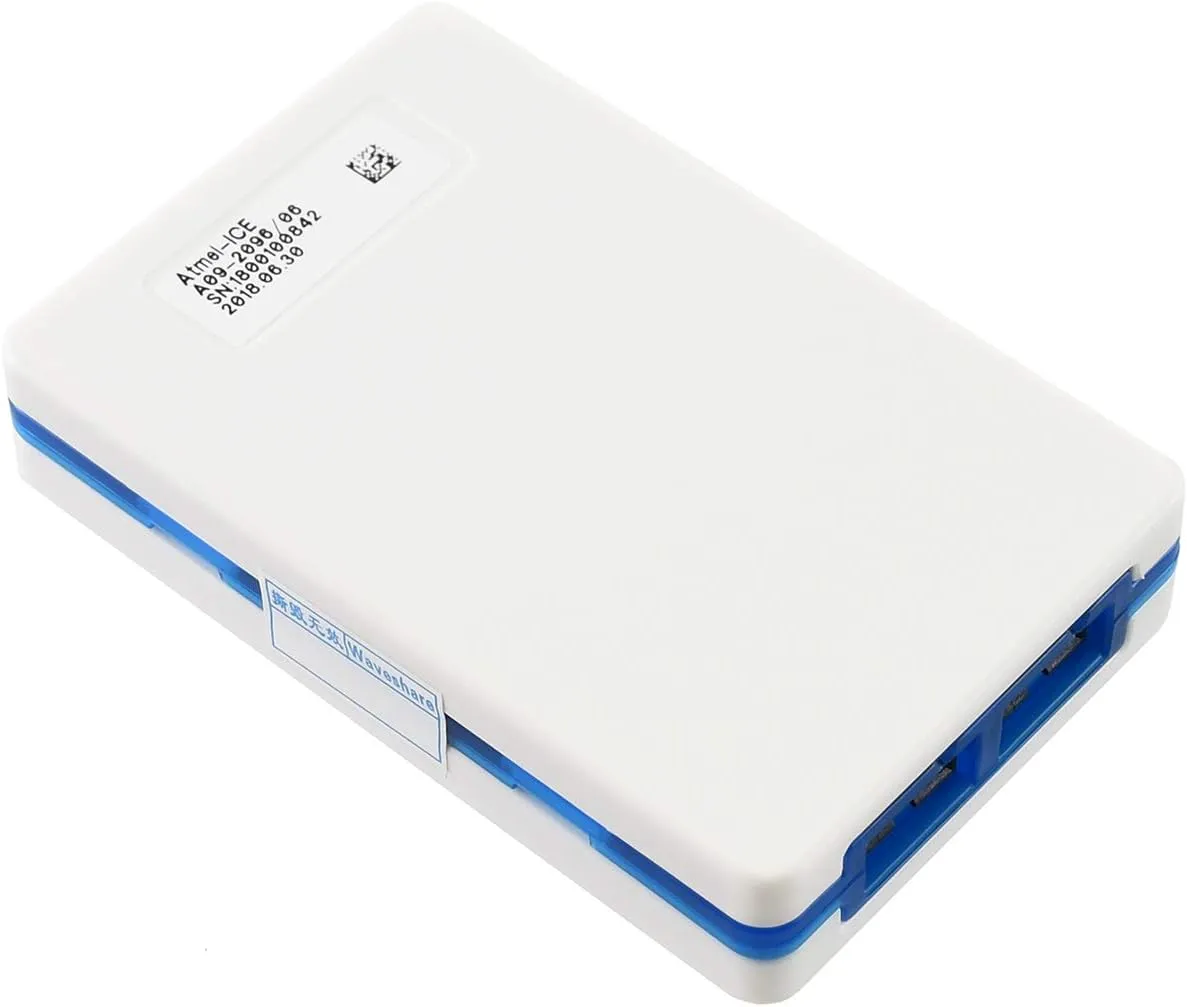

- Atmel-ICE is a powerful development tool for debugging and programming Atmel ARM Cortex-M based Atmel SAM and AVR microcontrollers with on-chip debug capability.
- Supports JTAG, SWD, PDI, TPI, aWire, SPI and debugWIRE interfaces. Full source-level debugging in Atmel Studio.
- Supports all built-in hardware breakpoints in the target microcontroller (number depends on the OCD module in the target). Up to 128 software breakpoints.
- 1.62 to 5.5V target operation. USB powered. Provides both ARM Cortex Debug Connector (10-pin) pin-out and AVR JTAG connector pin-out.
Waveshare Atmel-ICE Basic Kit Comes with Additional Adapter Board and Cables for Debugging and Programming Microcontrollers
